If several circles are to be plotted simultaneously, the corresponding values can be entered more easily by defining circle families.

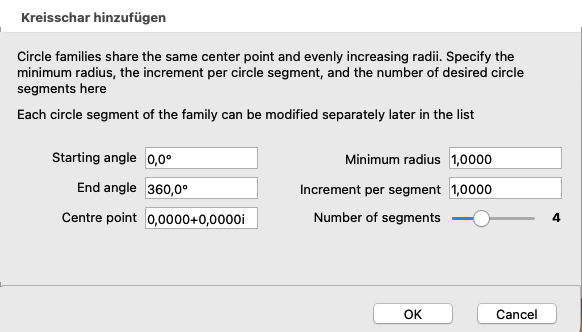

Circle families share the same centre point and have evenly increasing radii. Therefore, the start and end angles, the common centre point, the radius of the smallest circle segment, the radius increase per segment and the number of segments can be specified. After clicking on OK, the values are transferred to the list of Circle_sections. They can then be edited individually there to make further adjustments.
